Products
Pellet Mill

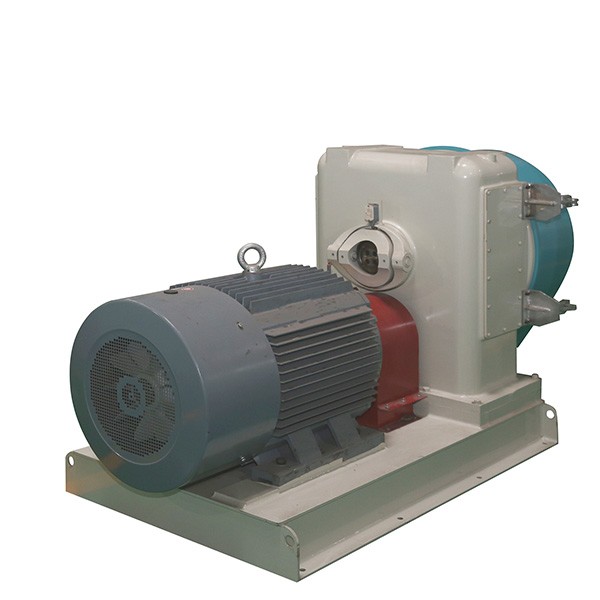

SZLH Pellet Mill
Main Feature
1.High precision gear direct-connecting driving is adopted for high efficiency and running stabilization.
2.Bearing and oil seals in key part of main drive system for high grade type pellet mill are imported.
3.Full stainless steel feeder;variable pitch anti-bridging structure;Imported Electromagnetic speed regulation control.

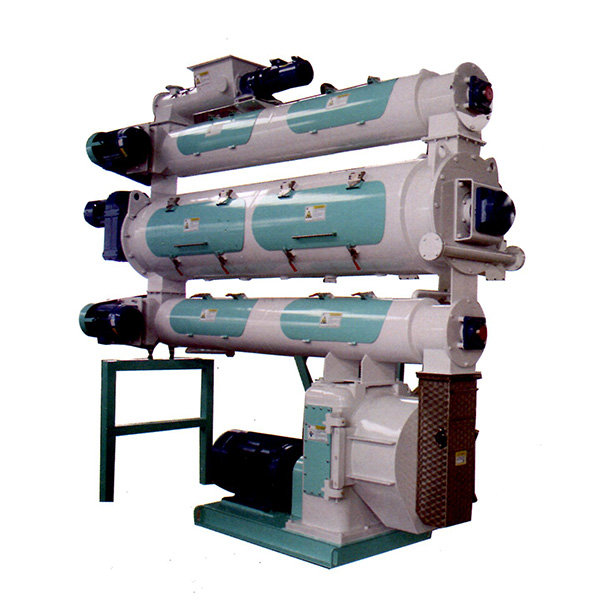

4.Full stainless steel conditioner with different kind of poultry type,aquatic type,enlarge type,single-layer type or multi-layer type.control conditioning and cooking tiem,increase the quality of feed.
5.Conditioner end is special sealed,axial steam spraying make material connect with steam more enough.
6.Model selection and assembly gap of main shaft is ensured enough from structure design,don't make gap of main shaft move because safety pin is broken and replaced,prolong the.lifetime of main shaft,ensure the machine running efficiency and stabilization long time.
7.New box is made by special foundry technology in imported machining center,high precision.
8.The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassem-bling and assembling and more reliable use.

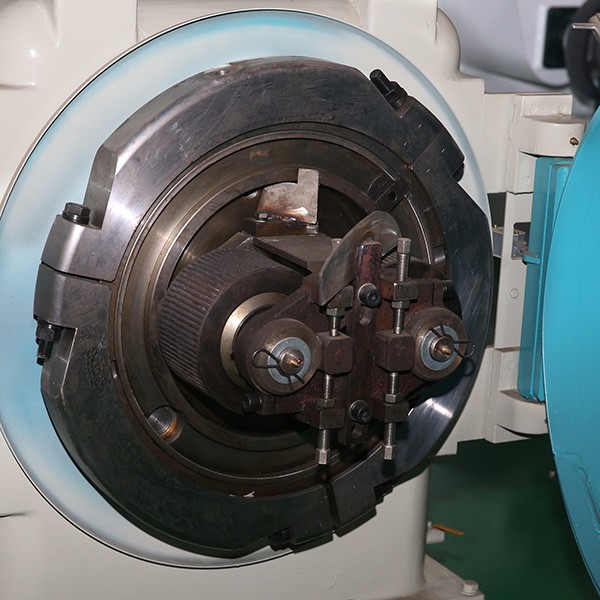

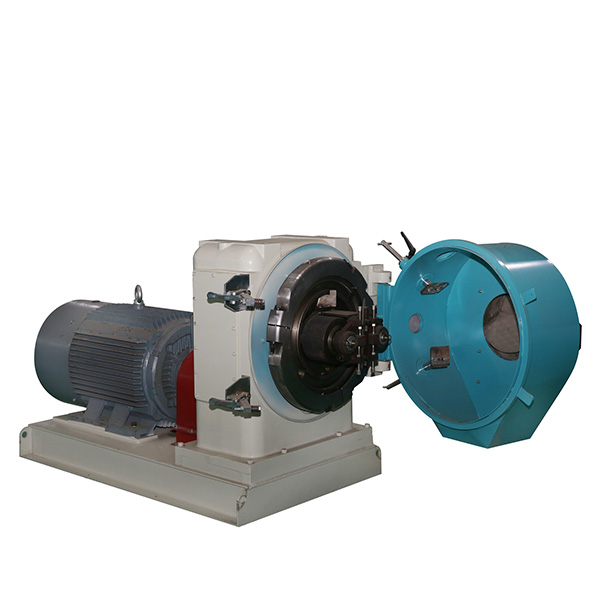

9.3 pc quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange,resulting in conve-nient and quick disassembling of die.

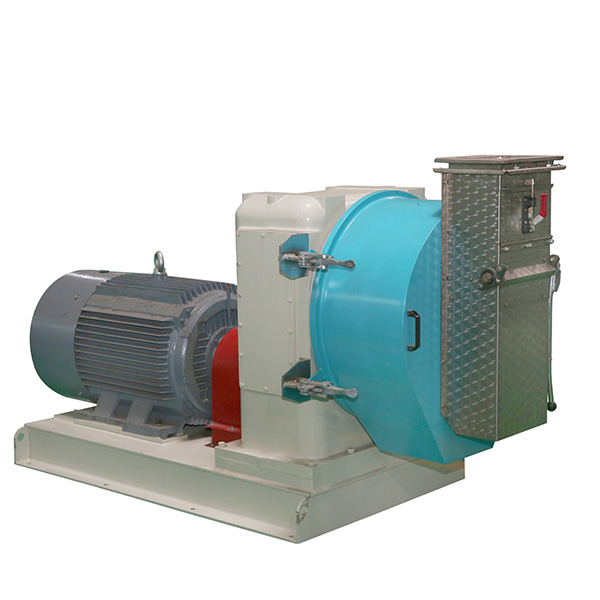

10.Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life.
11.Heavy welded base structure for whole machine,set deironing and overload protection device for protecting the ma-chine in use.
Model SZLH320 SZLH350 SZLH400 SZLH420 SZLH508 SZLH600
Die DIA.(mm) φ320 φ350 φ400 φ420 φ508 φ678
Main Power(kw) 37 55 75/90 110 110/132/160 220/250
Conditioner power(kw) 2.2 2.2 5.5 5.5 7.5 11
Feeder power(kw) 0.55 0.55 1.5 1.5 1.5 2.2
Capacity(t/h) 2-5 3-6 5-8 8-12 12-18 18-25
Roller Quantity 2 2 2 2 2 2
