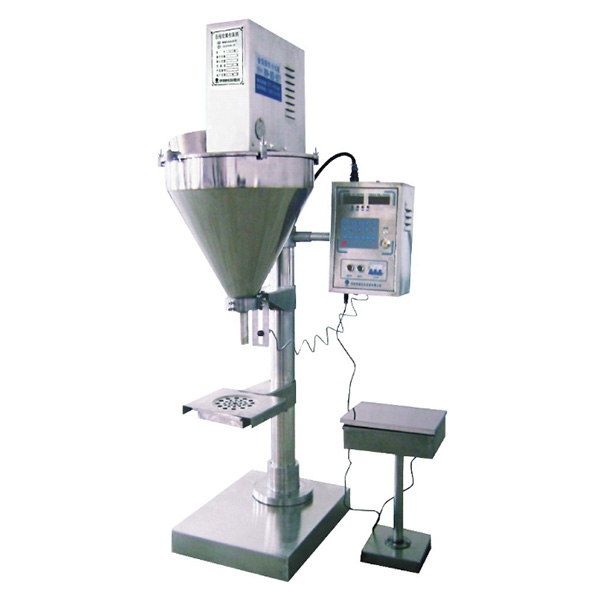

This machine is mainly suitable for quantitative filling, filling, and packaging of powdery materials (including various powders, powders, powder dispersions), micro powder materials, and small particle materials that are not afraid of crushing.
For example: flour, milk powder, pesticides, veterinary drugs, health products, fuels, chemical preparations, food seasoning, additives, micro fertilizers, etc. Mainly used in the veterinary medicine and seasoning industry. Randomly bring GMP validation plan, cleaning procedures, operation procedures, maintenance procedures, and other materials.
Features:
Combining proprietary technologies such as density tracking technology and density stacking equalization with weighing feedback, the three types of feedback are integrated to achieve faster adjustment accuracy and speed
The machine head is made of industrial cast aluminum, with stable mechanical performance, wrapped in a stainless steel cover, and the bracket is made of stainless steel
All parts in contact with materials are made of stainless steel for easy cleaning and prevention of cross contamination
High integration of circuits, fully shielded weak current, and integrated operation
All circuits, including strong and weak current parts, are self-developed for easy maintenance and low maintenance rates in the later stage
Wide packaging range: The same device can achieve packaging within the range of 5-5000 grams. Simply change the setting parameters and the corresponding feeder
Photoelectric control, easy to operate, clean bag opening, easy to seal
Reserved automatic feeding interface, optional automatic feeding system, achieving real-time control of material level and automatic feeding
Main technical parameters:
Packaging specification: 10g-1000g, actual capacity up to 5g-5000g, special capacity for 8000g
Packaging speed: 1500-4200 bags/hour
Accuracy level: 1.0
Power supply: 380V50HZ three wire four phase system (special can be used for two phase system 220V) 700W
Overall weight: 200kg
Overall size: long × wide × Height=1000 × six hundred and fifty × 1800 (mm)
